The Trimteck-Optimux OpTB Trunnion Mounted Ball Control Valve brings the reliability of a robust on/off valve design to throttling applications.

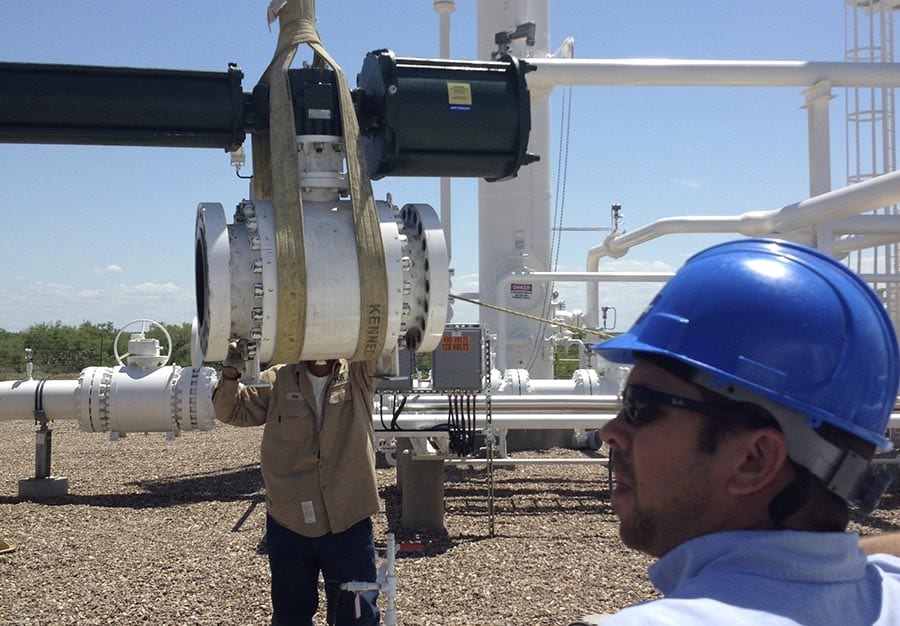

With several options for modification of the ball, including V-Notch and OS2T Noise Abatement, the OpTB can safely and efficiently tackle difficult flow control applications in Oil & Gas, Mining, and Power Generation. Often the OpTB serves double-duty as a throttling valve and an ESD ‘Slam Valve’, as pictured in this natural gas treating plant in South Texas.
General Specifications
| Diameter: | 2″ through 36″ |
| ANSI Pressure Class: | 150 through 2500 |
| Body Styles: | Trunnion-Mounted, Floating, Three-Piece, Two-Piece, Side Entry, Top Entry, Welded, Forged, Cast |
| End Connections: | Flanged, Socketweld, Buttweld |
| Trim Options: | Full Bore, Reduced Bore, V-Notch POB, Severe Service |
| Materials: | Carbon Steel, Stainless Steel, Special Alloys |
| Bonnets: | Standard, High Temperature, Cryogenic |
| Certifications: | PED, CRN, NACE, API 6D, API 607 |
| Other Configurations: | Contact Trimteck or your local Trimteck Sales Representative |
More information can be found in our Technical Library

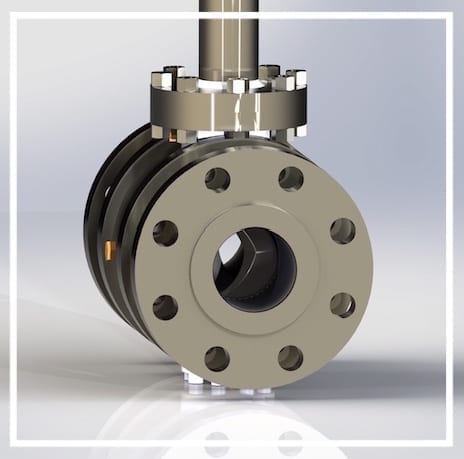

Trimteck’s OpTB Valve with the Process Optimizer Ball (POB) option
Provides flow characterization and astounding rangeability (turndown) of 300:1
